ProMaster

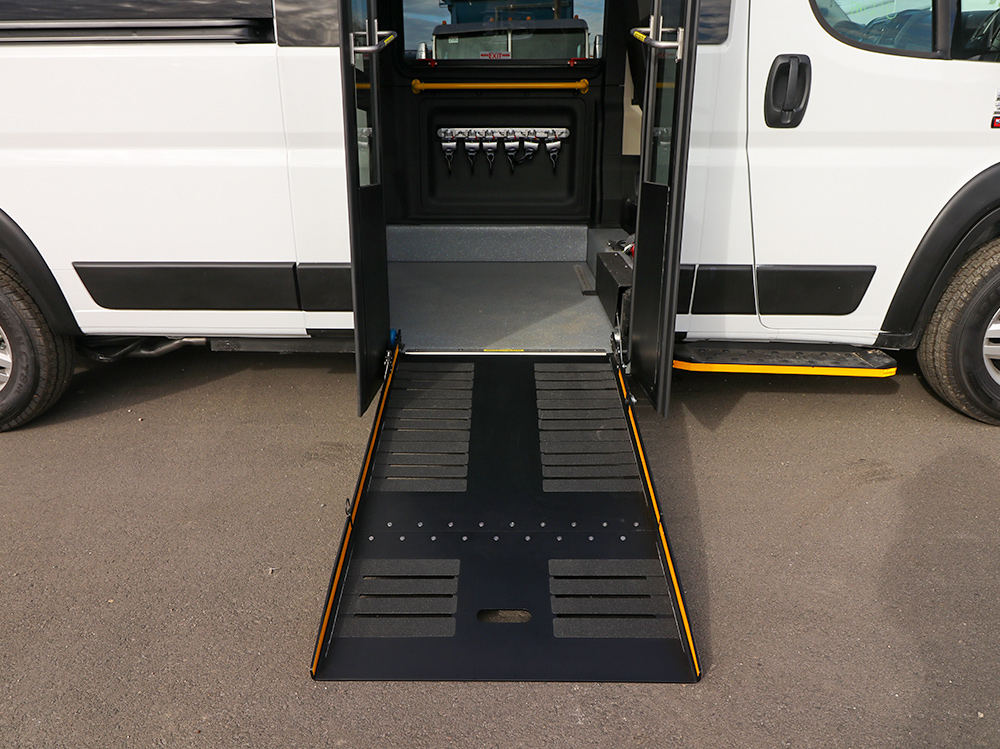

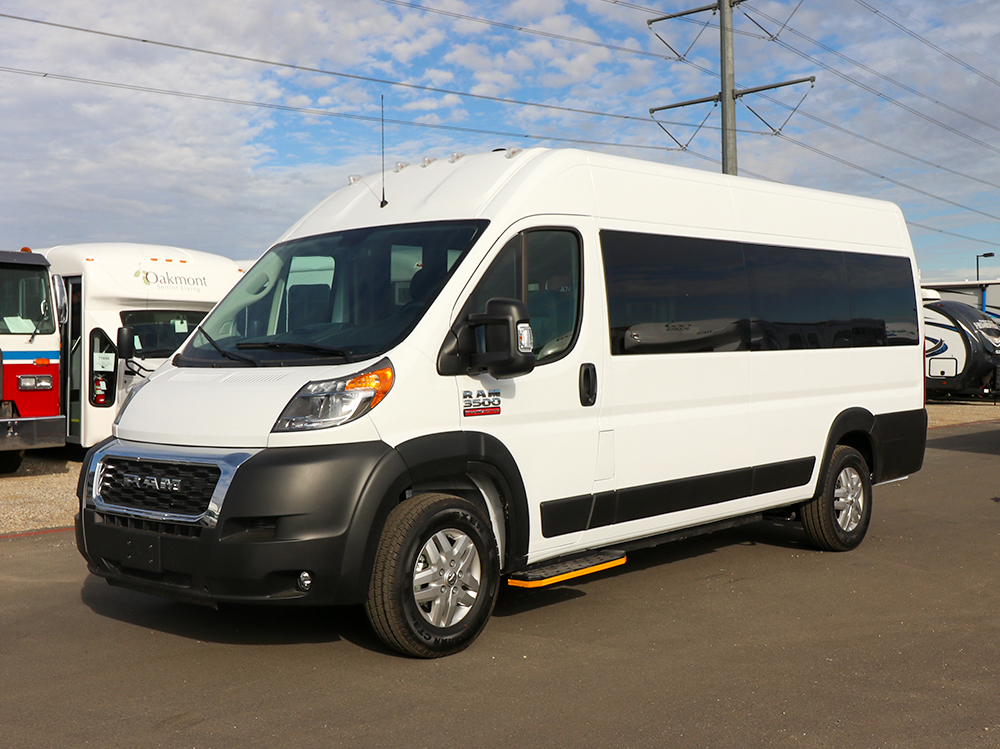

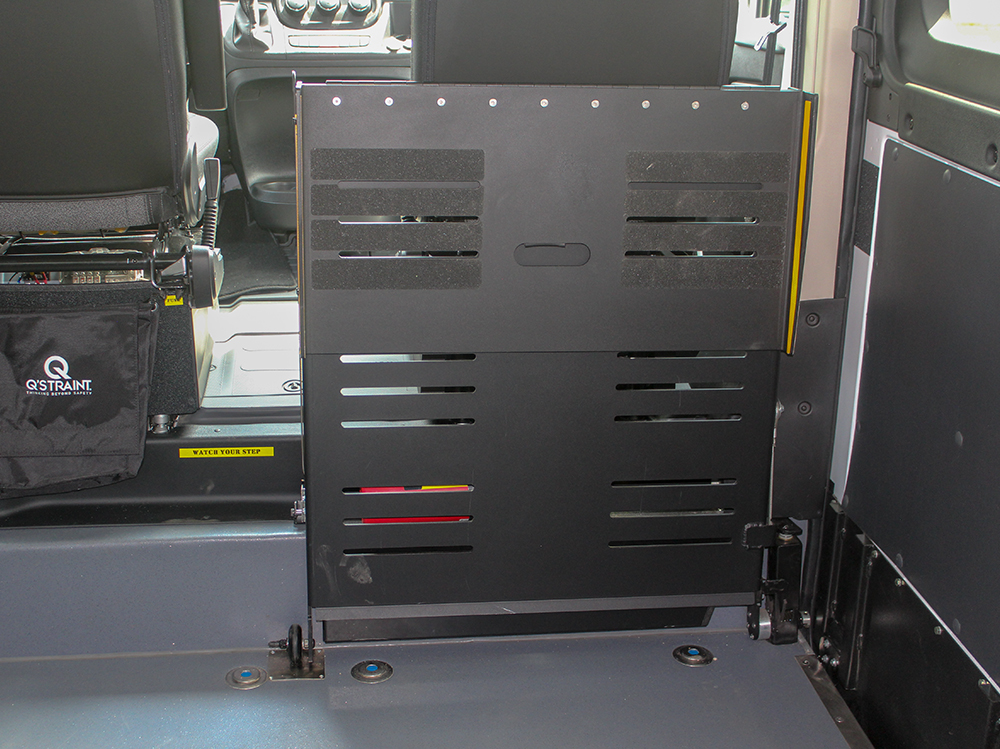

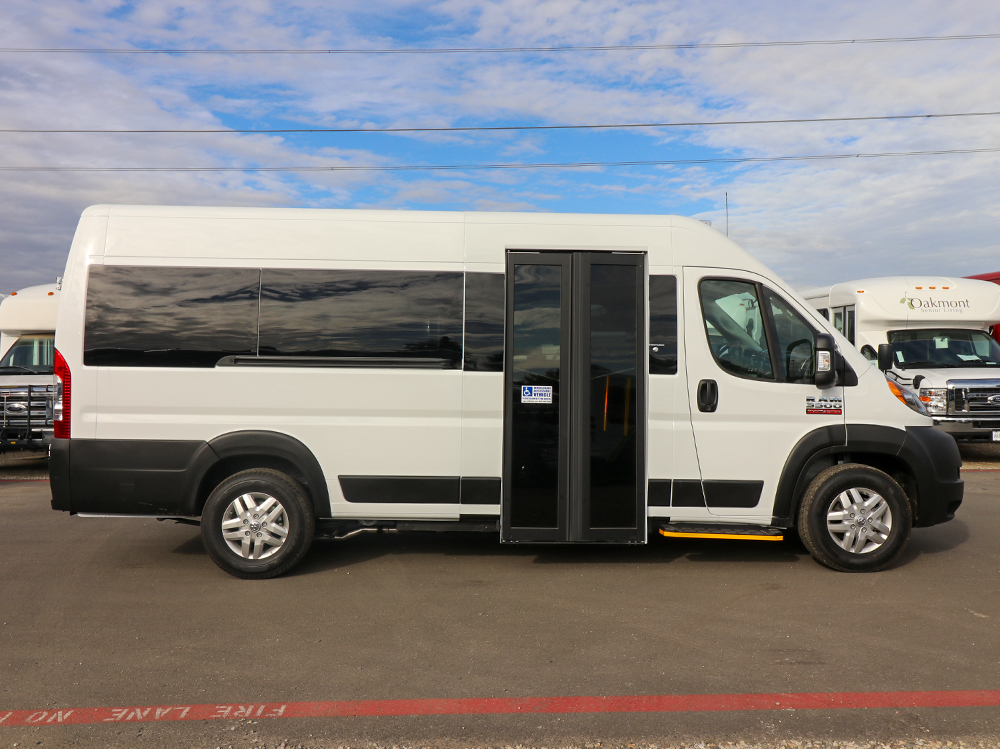

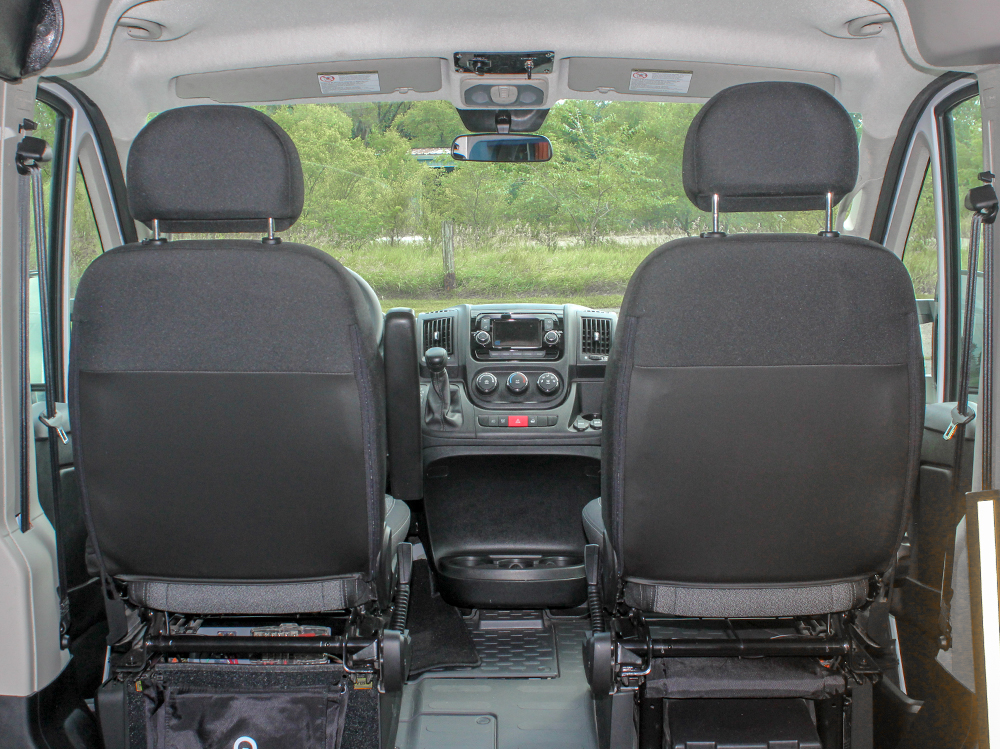

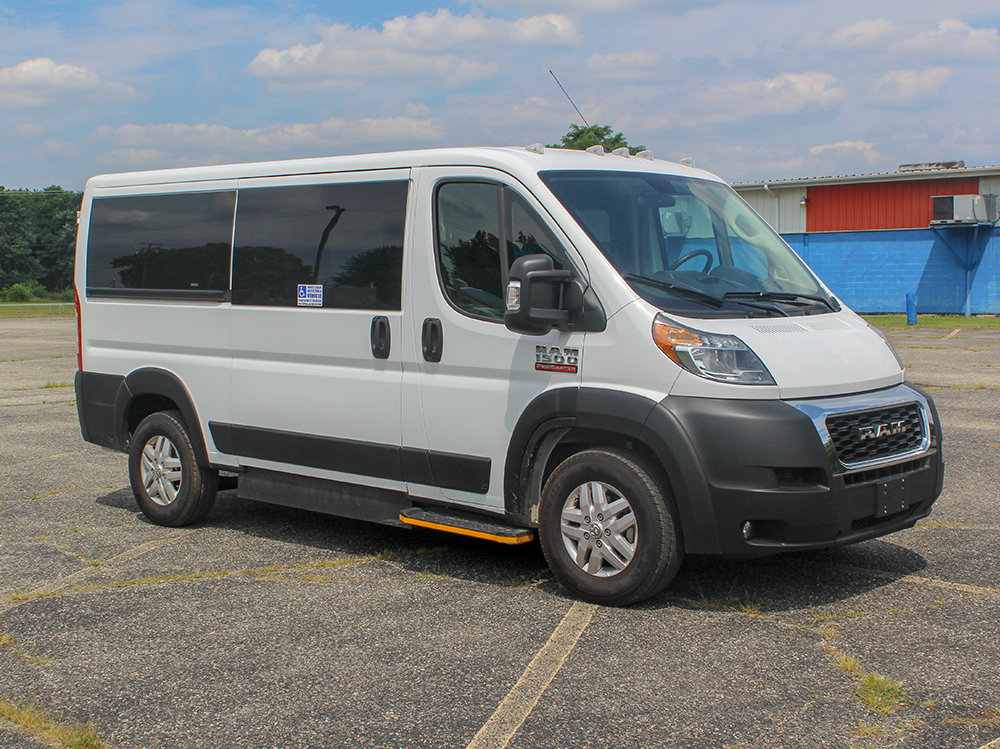

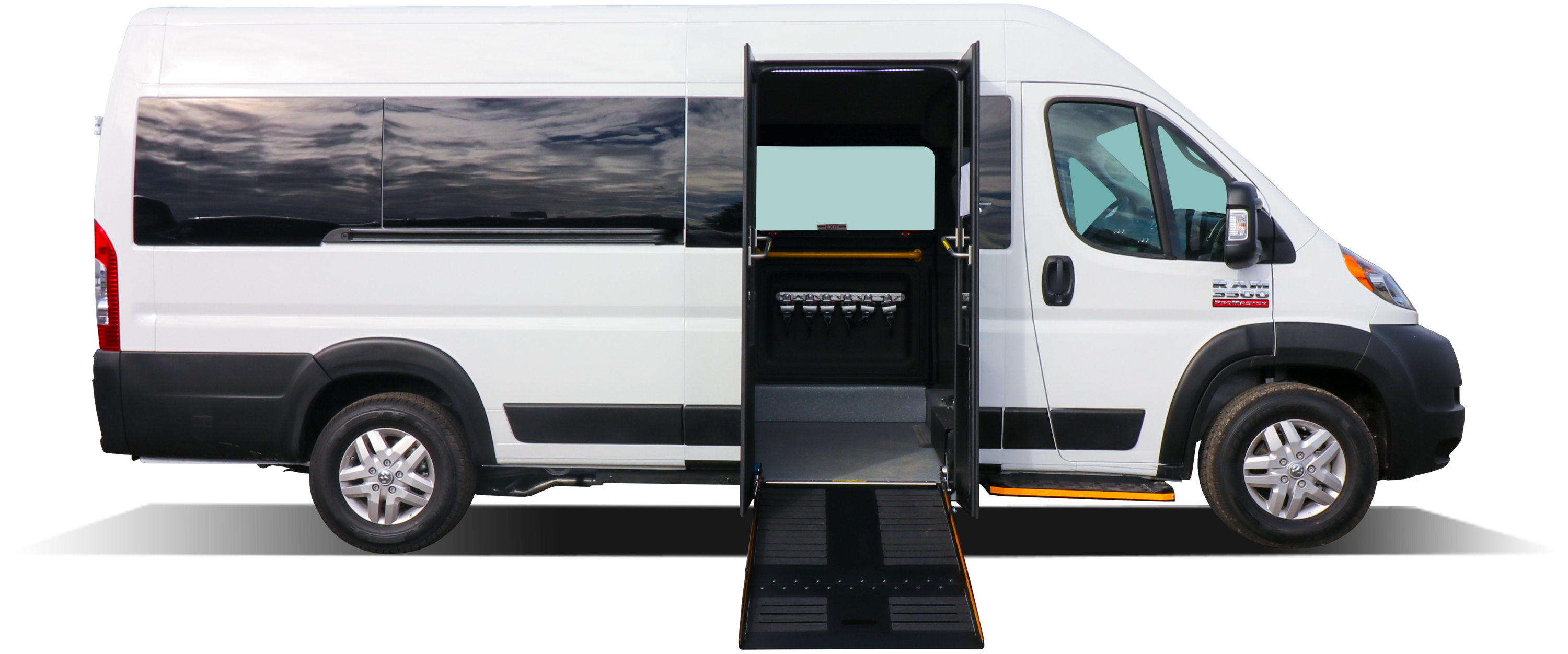

The Lone Star ProMaster is the only front-wheel drive full-size ADA van available in the market. Select between the 1500 or 3500 chassis models featuring the standard sidecut option or upgrade the 3500 chassis with a commercial bus cut door. Seating configuration options include up to 8 passenger seats with 2 wheelchair positions on the 1500 chassis & up to 14 passenger seats with 2 ADA wheelchair positions on the 3500 chassis. With an optional OEM swivel driver’s seat (not available on any other van/bus chassis), the driver can swivel the seat 180 degrees and step into the passenger area to assist passengers. The 900 lb. capacity manual 34” wide ramp is a spring-assisted ramp that is operator-friendly and is quicker than electric/hydraulic lifts. Gasoline or CNG options available.

Floorplans

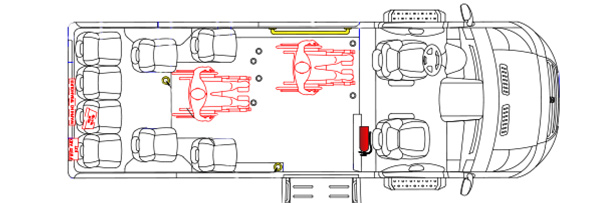

  • 8 PASSENGER 2 WHEELCHAIR PLUS DRIVER AND CO-PILOT

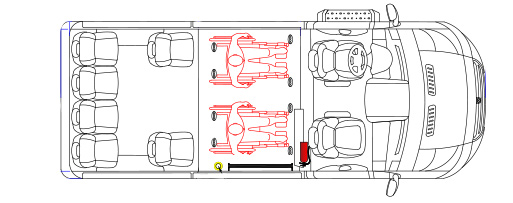

  • 6 PASSENGER 2 WHEELCHAIR PLUS DRIVER AND CO-PILOT
Previous Next

Standard Specifications

    • Length:
      • 213'
      • 250"
    • Wheelbase:
      • 136"
      • 159"
    • Chassis:
      • 1500
      • 3500
    • Engine:
      • 3.6L V6
      • 3.6L V6
    • GVWR:
      • 8550
      • 9350
    • Passenger Capacity:
      • 7
      • 9
    • Overall Width:
      • 81"
      • 81"
    • Overall Height:
      • 92"
      • 100"
    • Interior Width:
      • 70"
      • 70"
    • Interior Height:
      • 73"
      • 84"
    • Ground To Int. Floor:
      • 12.5"
      • 11.5"
    • Ground to 1st Step:
      • 12"
      • 12"
    • Step Riser:
      • 8"
      • 8"
    • Step Tread:
      • 6"
      • 6"
    • Step Width:
      • 30.25"
      • 30.25"
    • Entry Door Clear Opening With One Grab Rail:
      • 36"
      • N/A
    • Entry Door Clear Opening With Two Grab Rail:
      • N/A
      • 29"
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 22’
      • 24’
      • 25’
    • Wheelbase:
      • 158”
      • 158”
      • 190”
    • Chassis*:
      • E450
      • E450
      • E450
    • Engine:
      • 6.8L Gas
      • 6.8L Gas
      • 6.8L Gas
    • GVWR:
      • 12,500lb.
      • 14,500lb.
      • 14,500lb.
    • Passenger Capacity:
      • 21
      • 21
      • 25
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 115”
      • 116”
      • 116”
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 30”
      • 30”
      • 30”
    • Ground to 1st Step:
      • 12”
      • 12”
      • 12”
    • Step Riser:
      • 9”
      • 9”
      • 9”
    • Step Tread:
      • 11.5”
      • 11.5”
      • 11.5”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
