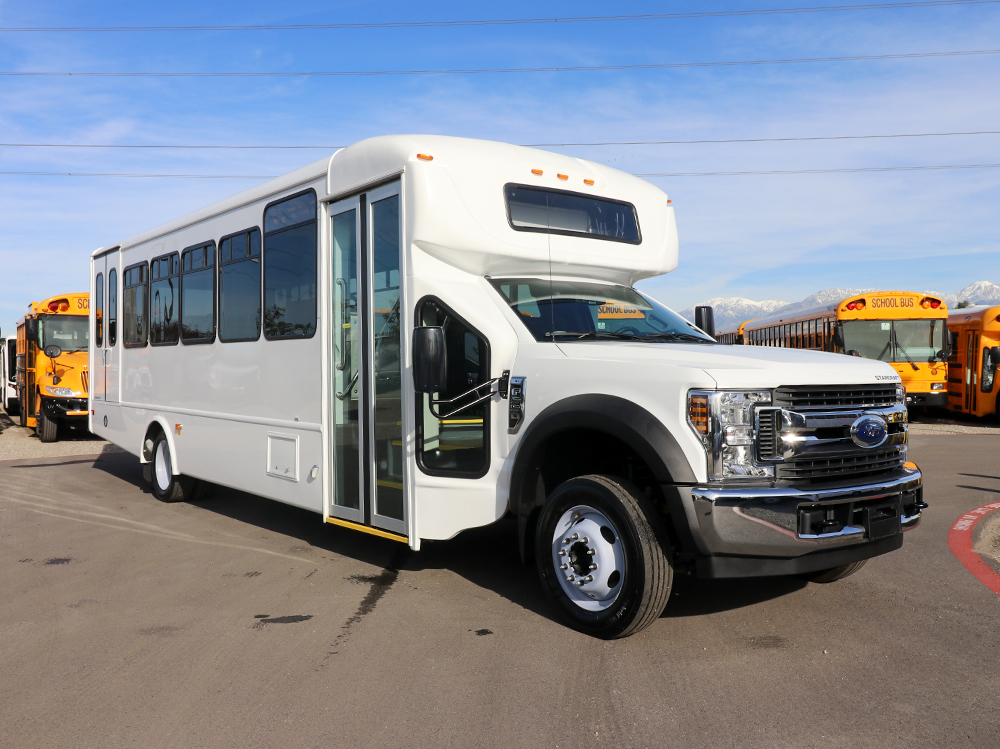

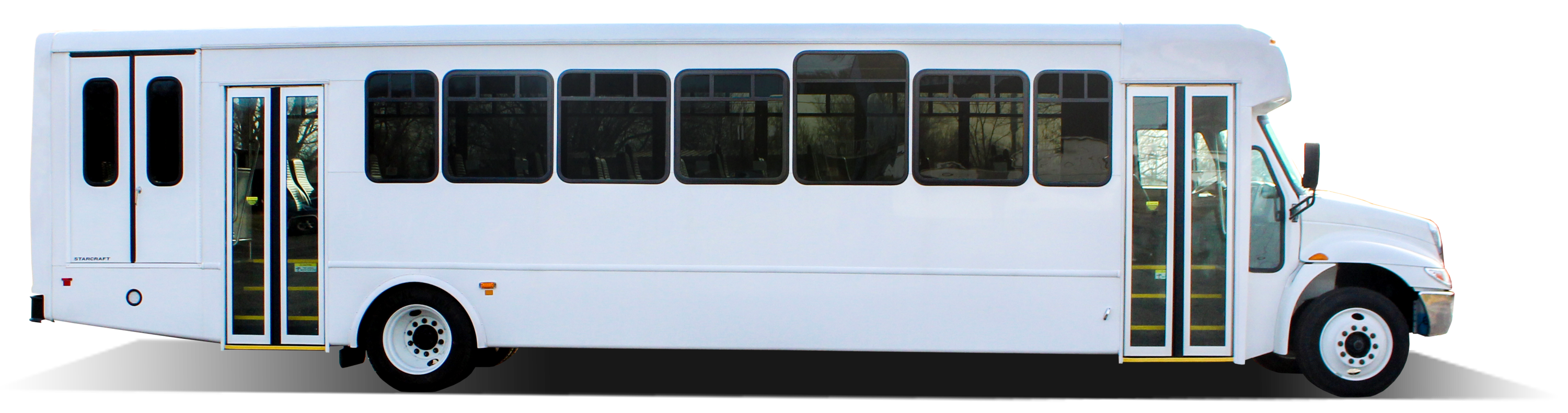

Allstar XL

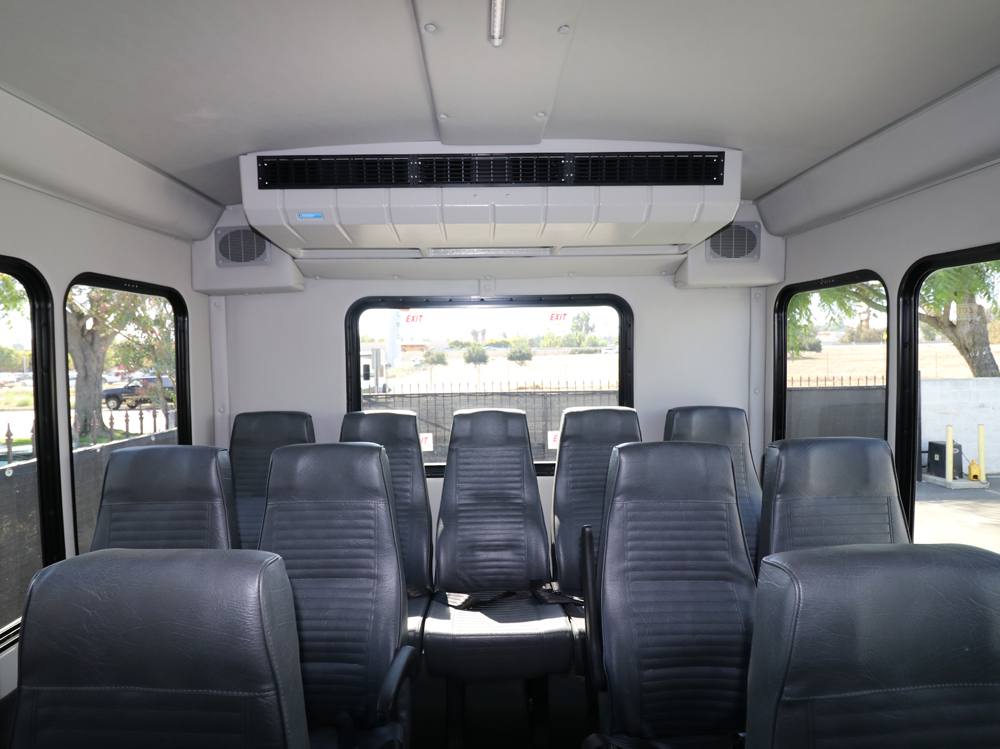

The Starcraft Allstar XL carries over the signature Allstar dependability on a much larger form factor. Seating configurations range between 20 and 32 ambulatory passenger seats with ADA options available. Chassis options include the International’s UC/TC Chassis, Freightliner Chassis, and Ford F-550 and F-50 Chassis. Passengers travel in comfort with the Allstar XL’s wide aisles, optional mid back or high back seating, a capacious driver area, and a large “Starview” visibility window in the front entry door. Rear luggage access door simplifies luggage retrieval and overhead luggage racks make the Allstar XL ideal for travel-related industries. Built with straight sidewall constructions for maximum dependability, the Allstar XL includes an unbeatable 5-year/100,000 mile standard warranty.

Floorplans

  • 24 PASSENGER 2 WHEELCHAIR WITH FLIP SEATS PLUS DRIVER
  • 24 PASSENGER 2 WHEELCHAIR WITH FOLDAWAY SEATS PLUS DRIVER
  • 24 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

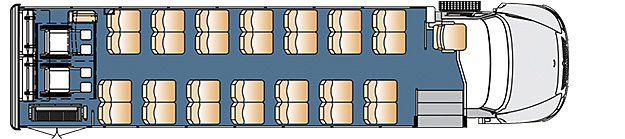

  • 28 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

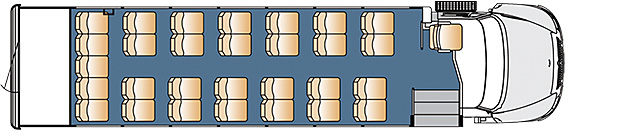

  • 29 PASSENGER PLUS DRIVER
  • 32 PASSENGER PLUS DRIVER
  • 28 PASSENGER 2 WHEELCHAIR WITH FLIP SEATS PLUS DRIVER

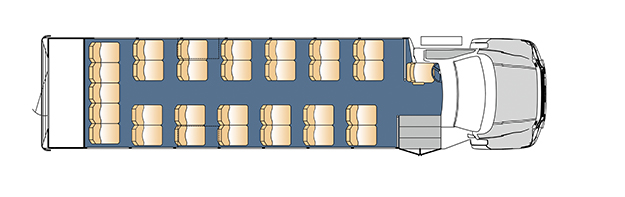

  • 29 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
  • 36 PASSENGER 2 WHEELCHAIR PLUS DRIVER
  • 37 PASSENGER PLUS DRIVER
  • 39 PASSENGER WITH REAR LUGGAGE PLUS DRIVER

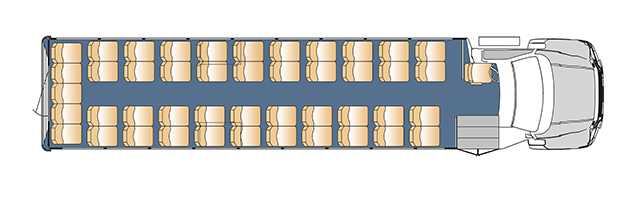

  • 45 PASSENGER PLUS DRIVER
  • 28 PASSENGER 2 WHEELCHAIR PLUS DRIVER
  • 29 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
  • 36 PASSENGER 2 WHEELCHAIR PLUS DRIVER
  • 37 PASSENGER PLUS DRIVER
  • 41 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
  • 45 PASSENGER PLUS DRIVER
  • 28 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER
  • 29 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
  • 36 PASSENGER 2 WHEELCHAIR WITH FLIP AND FOLDAWAY SEATS PLUS DRIVER
  • 37 PASSENGER PLUS DRIVER
  • 41 PASSENGER WITH REAR LUGGAGE PLUS DRIVER
  • 45 PASSENGER PLUS DRIVER
Previous Next

Standard Specifications

    • Length:
      • 28’
      • 30’
      • 32’
    • Wheelbase:
      • 205”
      • 217”
      • 238”
    • Chassis:
      • F550
      • F550
      • F550
    • Engine:
      • 7.3L Gas/6.7LDiesel
      • 7.3L Gas/6.7LDiesel
      • 7.3L Gas/6.7LDiesel
    • GVWR:
      • 19,500 lb.
      • 19,500 lb.
      • 19,500 lb.
    • Passenger Capacity:
      • 25
      • 29
      • 33
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 123”
      • 123”
      • 123”
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 78”
      • 78”
      • 78”
    • Ground To Int. Floor:
      • 30”
      • 30”
      • 30”
    • Ground to 1st Step:
      • 10.5”
      • 10.5”
      • 10.5”
    • Step Riser:
      • 10”
      • 10”
      • 10”
    • Step Tread:
      • 11.5”
      • 11.5”
      • 11.5”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 32’
      • 36’
      • 40’
    • Wheelbase:
      • 230”
      • 260”
      • 291”
    • Chassis:
      • F650
      • F650
      • F650
    • Engine:
      • 7.3L Gas/6.7LDiesel
      • 7.3L Gas/6.7LDiesel
      • 7.3L Gas/6.7LDiesel
    • GVWR:
      • 25,999 lb.
      • 25,999 lb.
      • 25,999 lb.
    • Passenger Capacity:
      • 33
      • 39
      • 45
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 126”
      • 126”
      • 126”
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 42”
      • 42”
      • 42”
    • Ground to 1st Step:
      • 14”
      • 14”
      • 14”
    • Step Riser:
      • 9.5”
      • 9.5”
      • 9.5”
    • Step Tread:
      • 9.375”
      • 9.375”
      • 9.375”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 32’
      • 36’
      • 40’
    • Wheelbase:
      • 230”
      • 260”
      • 291”
    • Chassis:
      • Freightliner
      • Freightliner
      • Freightliner
    • Engine:
      • Cummins 6.7L 240HP
      • Cummins 6.7L 240HP
      • Cummins 6.7L 240HP
    • GVWR:
      • 26000/30,000 lb.
      • 26000/30,000 lb.
      • 26000/30,000 lb.
    • Passenger Capacity:
      • 33
      • 39
      • 45
    • Overall Width:
      • 96”/102”
      • 96”/102”
      • 96”/102”
    • Overall Height:
      • 131”
      • 131”
      • 131”
    • Interior Width:
      • 93”/99”
      • 93”/99”
      • 93”/99”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 44”
      • 44”
      • 44”
    • Ground to 1st Step:
      • 15.5”
      • 15.5”
      • 15.5”
    • Step Riser:
      • 9.75”
      • 9.75”
      • 9.75”
    • Step Tread:
      • 9.75”
      • 9.75”
      • 9.75”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
    • Length:
      • 32’
      • 36’
      • 40’
    • Wheelbase:
      • 234”
      • 276”
      • 305”
    • Chassis:
      • International T/C
      • International T/C
      • International T/C
    • Engine:
      • Cummins ISB 300HP
      • Cummins ISB 300HP
      • Cummins ISB 300HP
    • GVWR:
      • 27,500/30,000 lb.
      • 27,500/30,000 lb.
      • 27,500/30,000 lb.
    • Passenger Capacity:
      • 33
      • 37
      • 45
    • Overall Width:
      • 96”
      • 96”
      • 96”
    • Overall Height:
      • 128”
      • 128”
      • TBD
    • Interior Width:
      • 93”
      • 93”
      • 93”
    • Interior Height:
      • 80”
      • 80”
      • 80”
    • Ground To Int. Floor:
      • 42”
      • 42”
      • 42”
    • Ground to 1st Step:
      • 13”
      • 13”|
      • 13”
    • Step Riser:
      • 9.5”
      • 9.5”
      • 9.5”
    • Step Tread:
      • 9.75”
      • 9.75”
      • 9.75”
    • Step Width:
      • 35.75”
      • 35.75”
      • 35.75”
    • Entry Door Clear Opening With One Grab Rail:
      • 31”
      • 31”
      • 31”
    • Entry Door Clear Opening With Two Grab Rail:
      • 30”
      • 30”
      • 30”
    *All specifications are references and may vary based on model and floorplan selection. Please contact us and one of our Sales Represenatives can verify specific vehicle specifications for you.
